Custom Electronic Controllers

With over 175 years of combined experience our engineers have seen and designed a large variety of custom electronics. We’ve developed technology in use in many different fields including but not limited to:

Medical (Root Canal Controller, Ultrasonic Teeth Cleaner, Gurney Controls, and Patient Lifts)
Car Wash Controllers
Freight Elevator Door Controllers
LED Lighting controllers for both Emergency and Non-Emergency vehicles
Networking Controllers (including CANBUS, MODBUS, Ethernet, WiFi and Bluetooth®)
Industrial Control Systems (Compressor Controllers, Actuator Controllers, Grounding Systems, Custom IO boards).
Defense
Energy
Chemical
Water and Waste Water
Oil & Gas

Not only do we work with you to design a controller that fits your needs and budget, we have the ability to develop the software for it as well as manufacture it on site in the heart of the US for easy shipping anywhere. So let US know how we can help you!

See below for a sampling of what we are capable of doing for you!

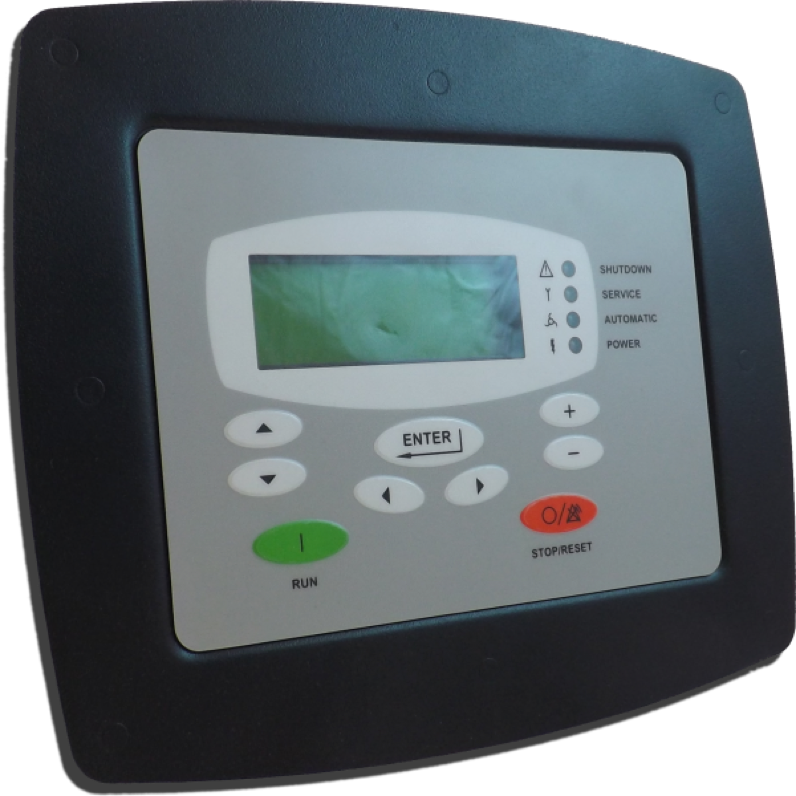

Gen 2 Compressor Controller

Four-line monochromatic display with backlight
In production for over ten years
Four each 24VDC Digital Outputs and Inputs. Expandable with add-on board
CANBus
Modbus

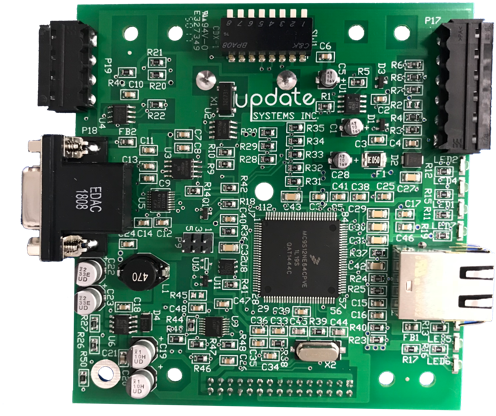

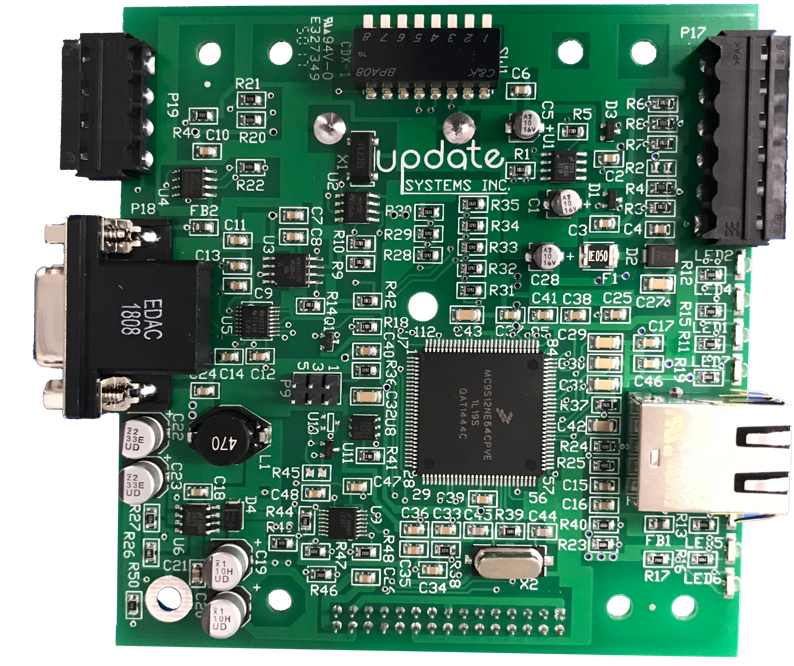

Gen 2 Compressor Controller Expansion

In production for over ten years
Four, eight, or twelve 24VDC Digital Outputs and Inputs
CANBus
Modbus
Ethernet

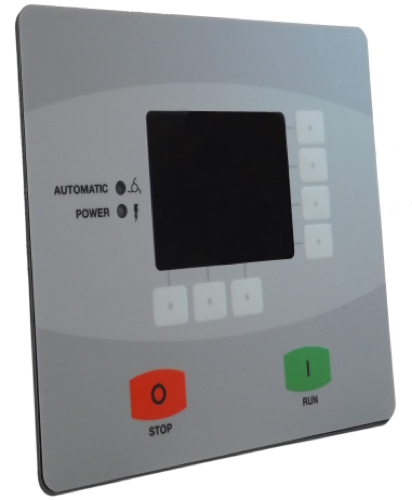

Gen 3 Compressor Controller

2.5” Full Color Display
Four each 24VDC Digital Outputs and Inputs. Expandable with expansion board
CANBus
Modbus
Ethernet
1GB Built in storage with expansion options (SD Card & USB)

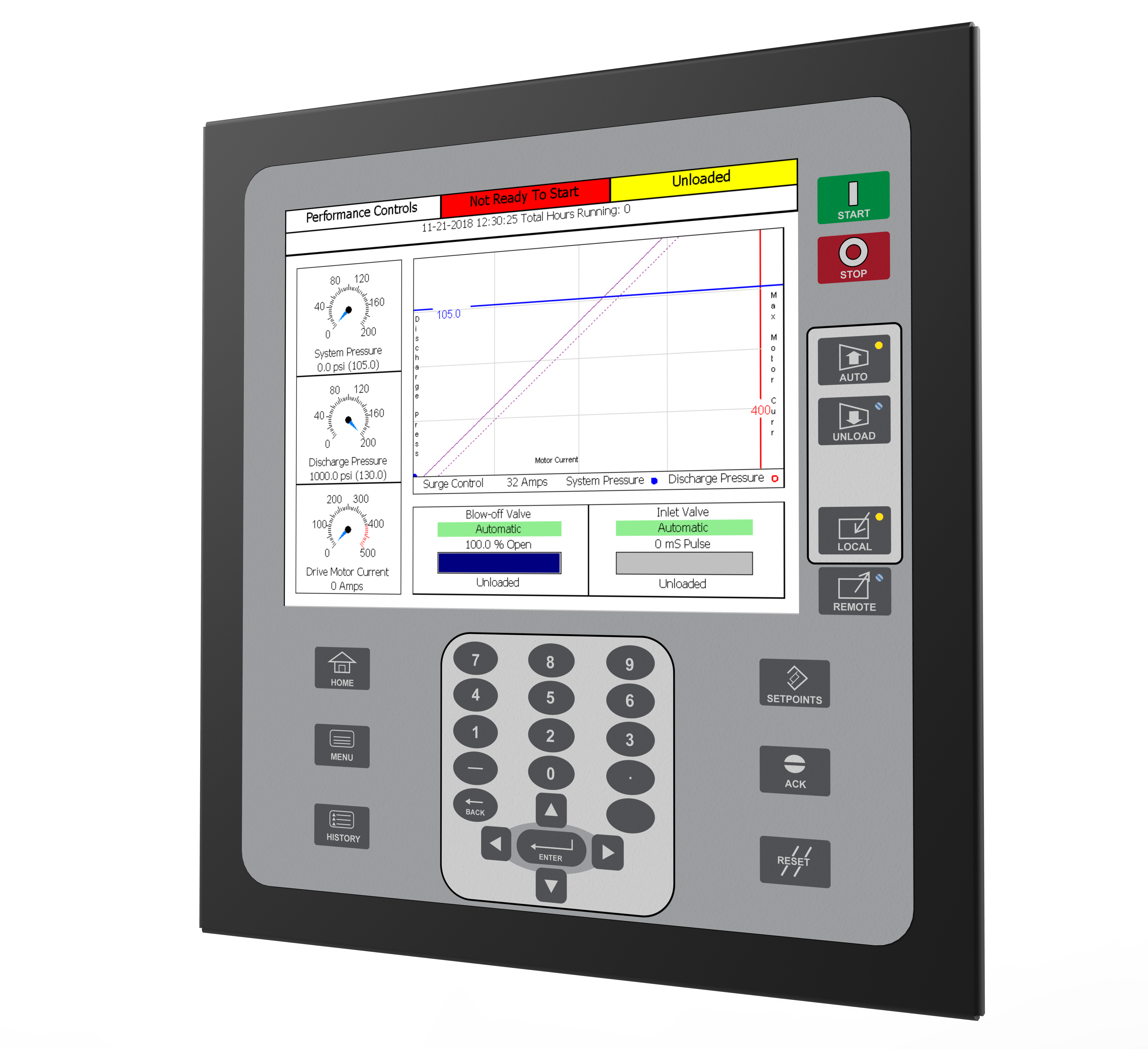

High Horsepower Compressor Controller

Compressor Controller
10.5” Full Color Display
Windows Compact OS
CANBus
Modbus
Ethernet
USB Support

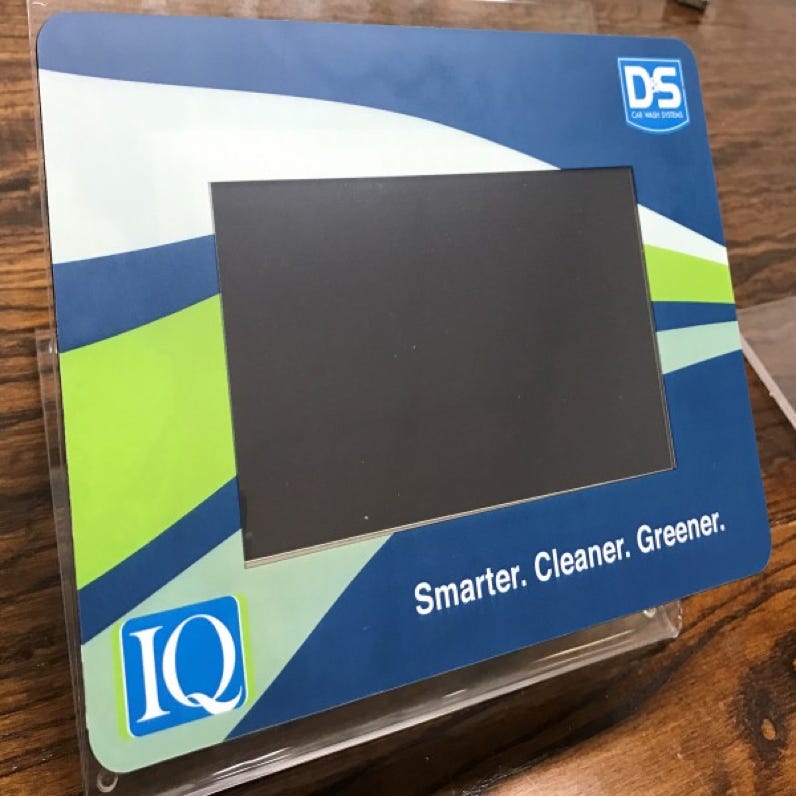

Car Wash Controller

7” Full Color Touch Screen Display
Windows Compact OS
CANBus
RS485
Ethernet
SD Card & USB Support

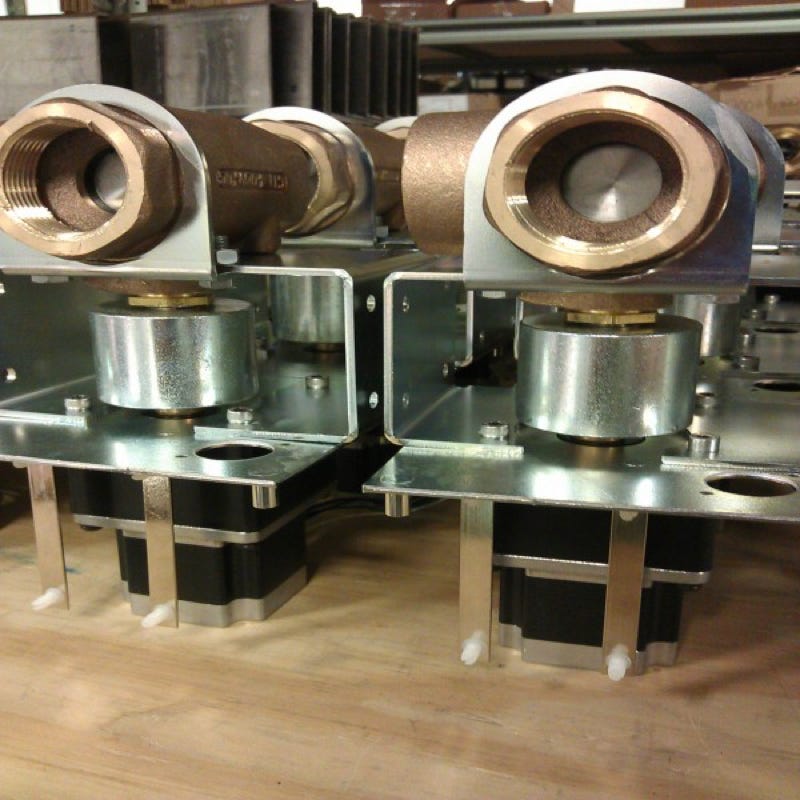

Valve with Integrated Controller

4-20mA or MODBUS control possible
50 In/Lb (3/4” NPT) or 150 In/Lb (1 1/4” NPT) options available

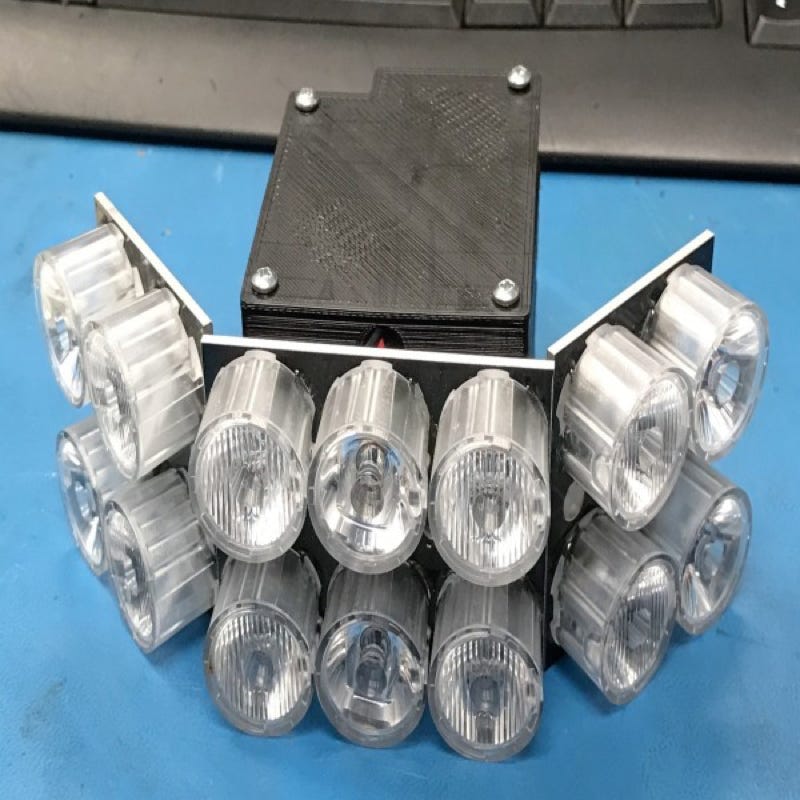

LED Flasher Control

Multiple designs made to run off of vehicular power
Programmable flash sequences
Override switch to stop flash sequence as desired
Push button allows cycling between flash sequences

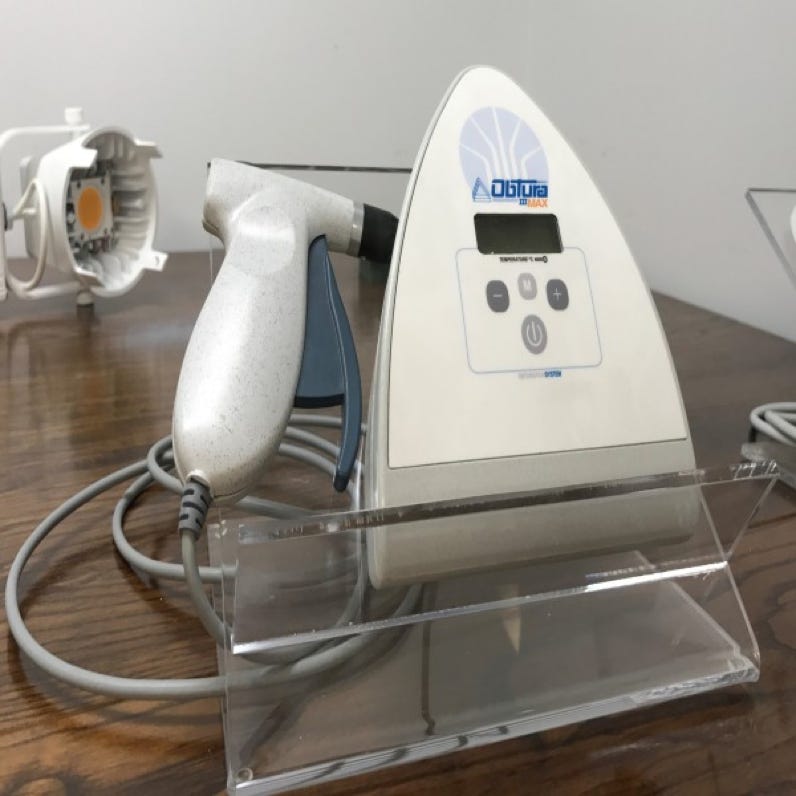

Root Canal Obturation Unit Controller

3 separate circuit boards that work together to control stable heat point
Measures/Maintains constant heat
High contrast display for easy viewing

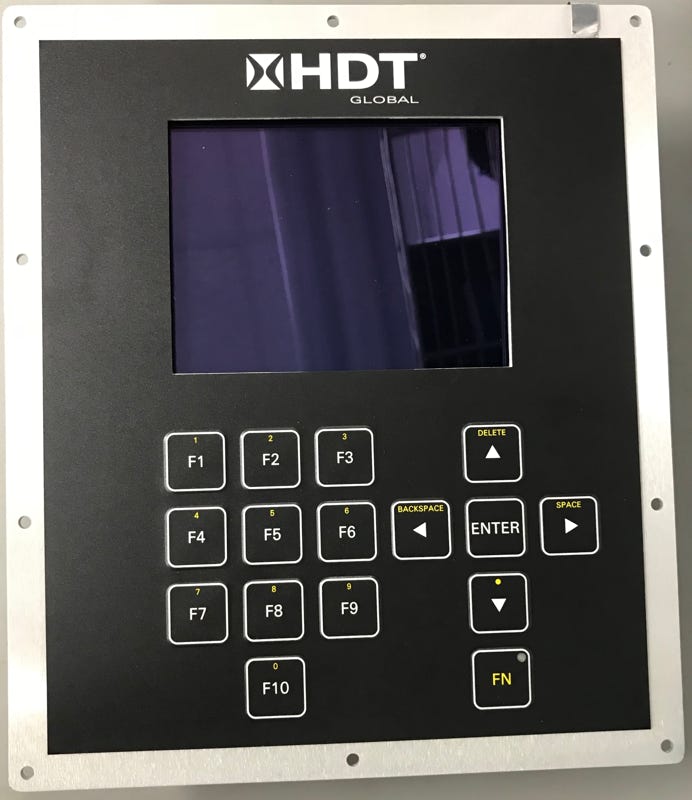

Military Grade HVAC Controller

5” Harsh Environment Monochromatic Display capable of functioning in -40°C
Windows Compact OS
CANBus
RS485
Ethernet
SD Card & USB Support

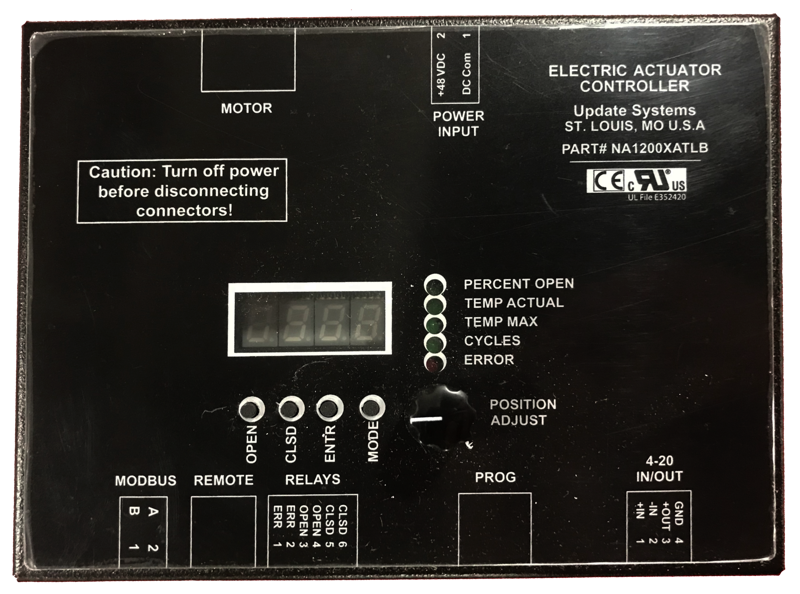

Remote Actuator Controller

4 Digit display
Modbus
CANBus
Buttons/Rotary Encoder for User Input
Communicates to actuator via industrial cable
